Features

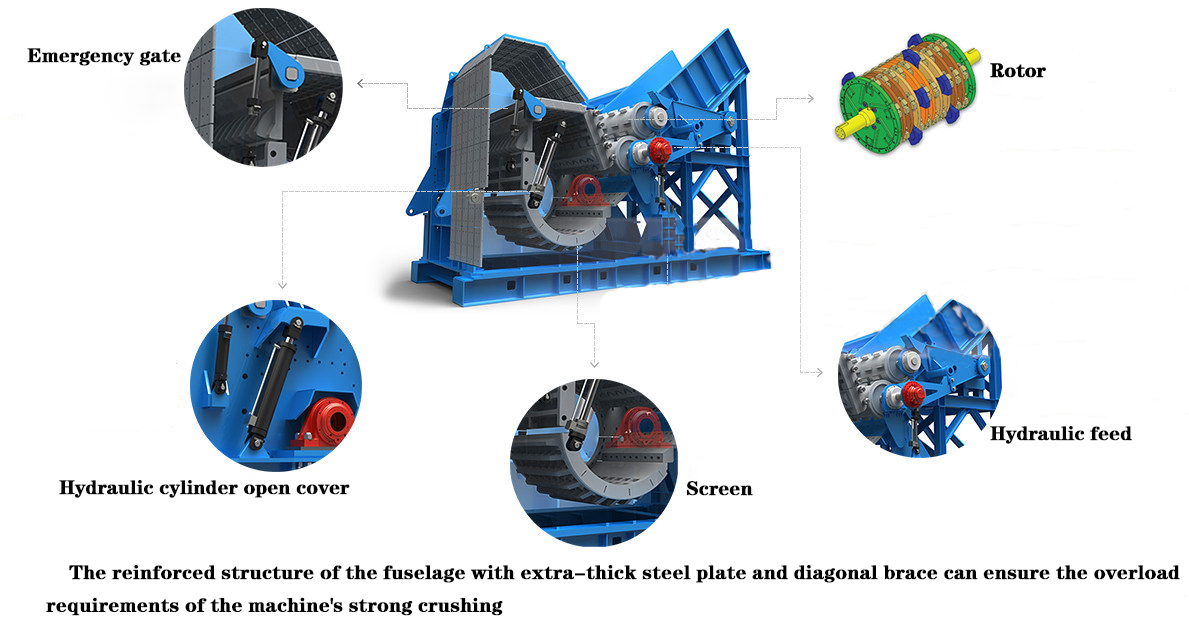

Color steel tile crusher is mainly used for crushing cans, color steel tile crushing, scrap car crushing, paint bucket crushing, iron filings crushing and other scrap metal recycling crushing processing. The fine processing of scrap metal is realized so as to achieve better profit prospects in terms of transport cost and recovery price of scrap metal. In the structure of the equipment, the main body shell is made of extra-thick steel plate, and the inner liner is high manganese cast steel to protect the external body. In the rotor part of the main body, the machine adopts a disc type tight rotating mechanism, and several steel plates are installed on the horizontal axis on the rotor (the number and diameter of the steel plates are based on the model), and the circumference of the steel plate is distributed with 6 pins. The axial suspension has a number of hammer heads for crushing the material, the main shaft is supported by ball bearings, the circulating oil is forced to lubricated and cooled, and the temperature sensor is equipped to ensure the high-speed and stable operation of the equipment, and the scrap crushing operation is completed through the coordination of the above shell and the main shaft.
Working Rrinciple:
The core principle of scrap metal crusher is to use the basic principle of hammer hitting, driven by high-speed high-torque motor, the hammer head on the main engine rotor takes turns to hit the object to be broken into the chamber, through the space formed between the liner and the hammer head, the object to be broken into the specification of the broken object. According to the working condition of the crusher, it can be divided into dry system, wet system and semi-wet system. The dry system mainly refers to the broken material must pass through the air rotation sorting system to separate the metal and non-metal, and the whole system is equipped with a dust removal device. The wet system means that water is sprayed at the same time of crushing, and water is washed at the same time of sorting. The semi-wet system is only sprayed with a small amount of water to prevent dust when it is broken, and there is no cleaning.
Product Advantages:
1, scrap steel crusher has strong power, solid structure for large output work has good force and shock absorption effect and stable operation;
2, the combination of high-speed rotating thickening hammer plate and fixed knife can easily penetrate a variety of scrap steel profiles, scrap scraps from large size to small size to complete the crushing;
3, high manganese steel wear-resistant liner cast by Meng13, durable, stable operation;
4, the scrap crusher adopts the forced pre-crushing feeding device multi-stage penetration quantitative feeding, can achieve uniform feeding stable crushing rhythm to improve the crushing effect;
5: Scrap crusher adopts automatic hydraulic lid opening device, no manual lid opening, convenient for later maintenance;
6: Scrap crusher equipped with strong magnetic sorting conveyor can complete the metal and non-metal rapid sorting in the scrap discharge moment;
7: Scrap crusher adopts automatic centralized control panel, button start without manual field operation, reduce manpower to improve efficiency.
Technical Data:
型号 | 进料口尺寸 (mm) | 出料粒度 (mm) | 产量 (t) | 功率 (kw) | 重量 (t) | 外形尺寸 (mm) |
600 | 500×600 | 10-40 | 0.5-1 | 18.5 | 2.2 | 1720×660×1850 |
800 | 700×800 | 10-50 | 1-1.5 | 30 | 3.6 | 1910×850×1990 |
1000 | 900×1000 | 14-70 | 2-3 | 75 | 6.5 | 2000×1070×1990 |
1200 | 1000×1200 | 20-70 | 3-5 | 90 | 10 | 2400×1090×2270 |
1600 | 1200×1600 | 20-100 | 4-6 | 110 | 18 | 3240×1730×3630 |
1800 | 1200×1800 | 20-120 | 5-8 | 132 | 24 | 3620×1910×3870 |
2000 | 1200×2000 | 20-140 | 7-10 | 160 | 37 | 4140×2230×4279 |
