Features

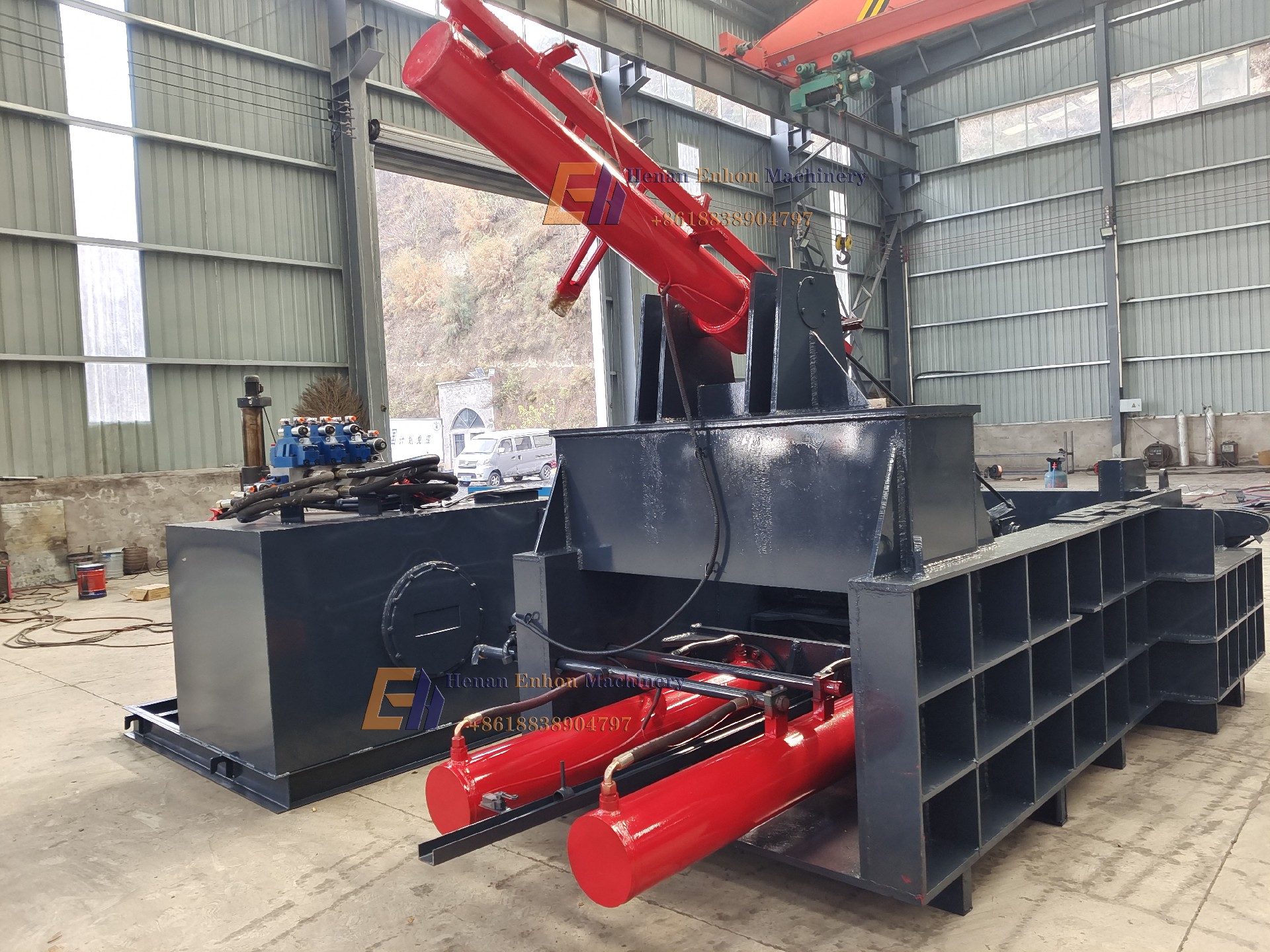

Metal block press can squeeze all kinds of metal scrap materials (steel shavings, scrap steel, scrap aluminum, scrap stainless steel and scrap automobile scrap, etc.) into cuboid, octagon, cylinder and other shapes of qualified charge. It can not only reduce the transportation and smelting cost, but also increase the furnace casting speed.
Working Rrinciple:
The basic principle of the hydraulic metal press is to use the metalmaterial under the action of external force, can produce plastic deformation of the property, to the metal material with enough, can gather and produce deformation of the external force, so as to form a tight bundle. Therefore,plastic deformation can not be produced, or plastic deformation is very small metal, can not be directly packaged. Such as high carbon steel, tool steel, wire rope and cast iron, etc., can not be directly installed for packaging.
Product Advantages:
1. Hydraulic metal chip pressing machine is mainly used for various metalchips (iron chips, copper chips, aluminum chips, etc.), powder granular metal powder (iron powder, aluminum powder, copper powder, lead powder, etc.),smelting additives, sponge iron, etc., without adding any adhesive to press into high-density cylindrical cake (weight 2-8 kg), cake density up to 5T/M3 or more (raw materials are different, The pressed cake density is not the same as the weight), the pressed cake can be directly used in the furnace, the cast iron grade can reach HT200-250, and the cost can be saved about 700 yuan per ton of casting.
2. Adopt the latest hydraulic transmission technology, use high-quality wear-resistant oil seal, and the cylinder is processed and assembled by domestic high-tech technology, so as to ensure that continuous operation does not weaken the cylinder pressure, durable and smooth operation; Computer control, high degree of automation, low failure rate, easy maintenance, etc.
Technical Data:
Equipment model | Pressure(ton) | Press bin size（mm） | Bales size（cm） | Press time（s） | Power（kW） |
EH-Y81-125 | 125 | 1200*800*500 | 30*30 | 100 | |
EH-Y81-135 | 135 | 1200*1000*600 | 30*30 | 110 | 18.5 |
EH-Y81-160 | 160 | 1200*1000*600 | 35*35 | 110 | 18.5 |
EH-Y81-180 | 180 | 1600*1200*800 | 40*40 | 130 | 22 |
EH-Y81-200 | 200 | 1600*1200*800 | 50*50 | 140 | 22+15 |
EH-Y81-250 | 250 | 2000*1750*1000 | 50*50 | 150 | 44 |
EH-Y81-315 | 315 | 2500*2000*1200 | 50*50 | 170 | 60 |
EH-Y81-400 | 400 | 3000*2500*1200 | 60*60 | 180 | 90 |
