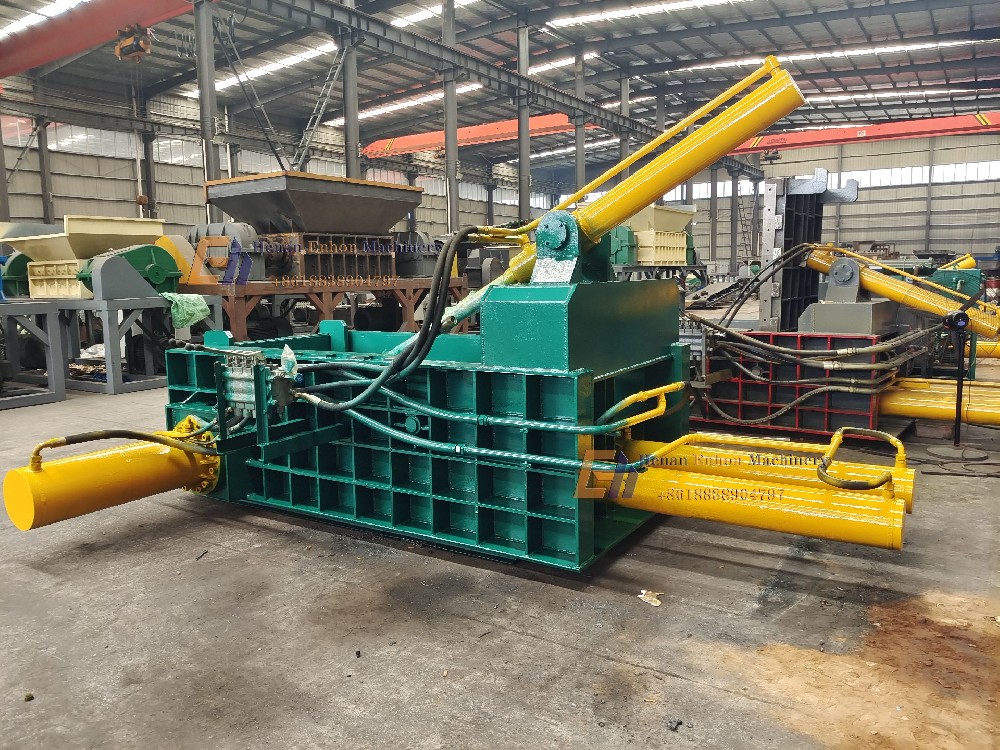

Metal block press

　　The basic principle of the hydraulic metal press is to use the metalmaterial under the action of external force, can produce plastic deformation of the property, to the metal material with enough, can gather and produce deformation of the external force, so as to form a tight bundle. Therefore,plastic deformation can not be produced, or plastic deformation is very small metal, can not be directly packaged. Such as high carbon steel, tool steel, wire rope and cast iron, etc., can not be directly installed for packaging.

　　1. Hydraulic metal chip pressing machine is mainly used for various metalchips (iron chips, copper chips, aluminum chips, etc.), powder granular metal powder (iron powder, aluminum powder, copper powder, lead powder, etc.),smelting additives, sponge iron, etc., without adding any adhesive to press into high-density cylindrical cake (weight 2-8 kg), cake density up to 5T/M3 or more (raw materials are different, The pressed cake density is not the same as the weight), the pressed cake can be directly used in the furnace, the cast iron grade can reach HT200-250, and the cost can be saved about 700 yuan per ton of casting.

　　2. Adopt the latest hydraulic transmission technology, use high-quality wear-resistant oil seal, and the cylinder is processed and assembled by domestic high-tech technology, so as to ensure that continuous operation does not weaken the cylinder pressure, durable and smooth operation; Computer control, high degree of automation, low failure rate, easy maintenance, etc.

Equipment model	Pressure(ton)	Press bin size（mm）	Bales size（cm）	Press time（s）	Power（kW）
EH-Y81-125	125	1200*800*500	30*30	100	15
EH-Y81-135	135	1200*1000*600	30*30	110	18.5
EH-Y81-160	160	1200*1000*600	35*35	110	18.5
EH-Y81-180	180	1600*1200*800	40*40	130	22
EH-Y81-200	200	1600*1200*800	50*50	140	22+15
EH-Y81-250	250	2000*1750*1000	50*50	150	44
EH-Y81-315	315	2500*2000*1200	50*50	170	60
EH-Y81-400	400	3000*2500*1200	60*60	180	90
